CASE STUDIES
iTherm® IM Custom made Insert Customer Case
Background information
Our customer that produces thick wall plastic piping was struggling with cycle times when moulding 90° pipe elbows. Their cycle time was 256 seconds.

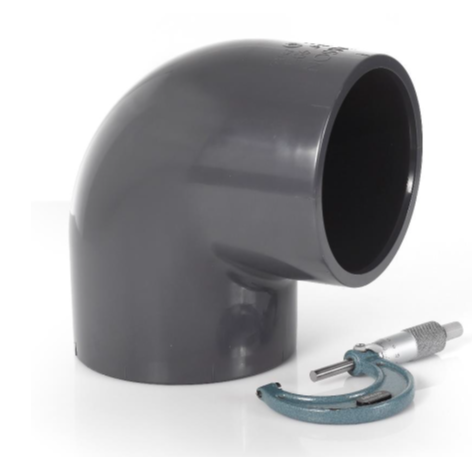

Plastic elbow
FEA analysis was carried out, predicting a massive cycle time reduction to 125 seconds.

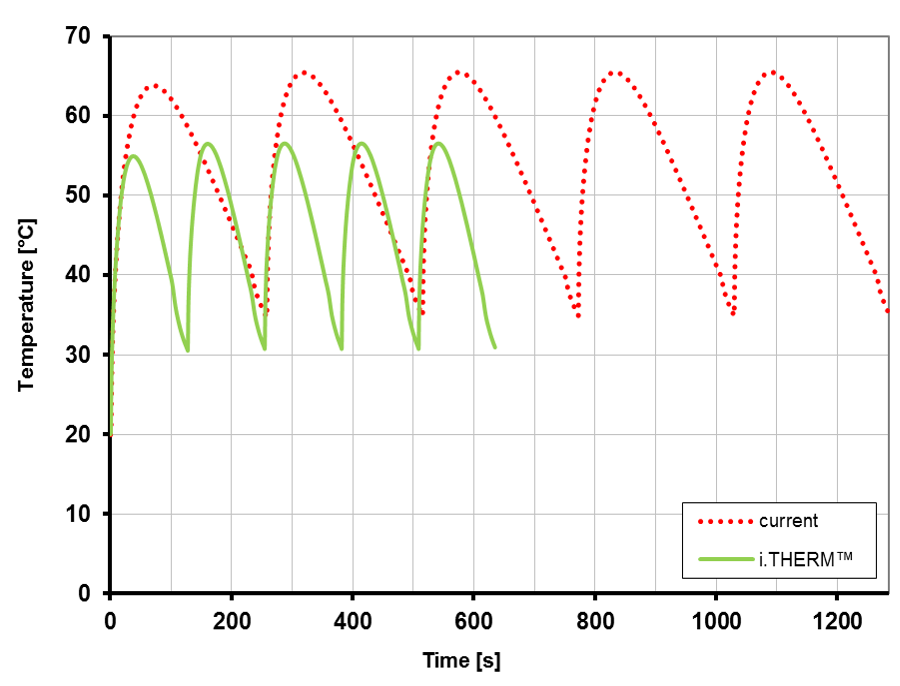

FEA analyis
Based on big potential savings customer decided to replace its current core with conformally cooled iTherm® Core.

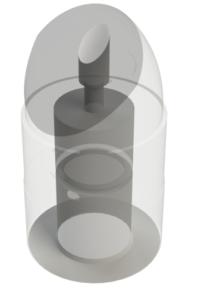

Current convetionally made Core

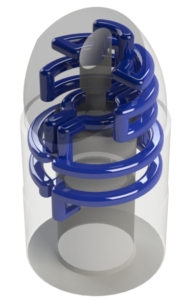

iTherm® Core with conformal cooling channels

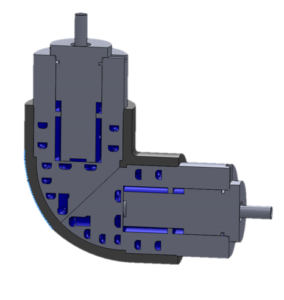

Tool scheme with iTherm® Core
Improvements
with iTherm® Custom Made Core
More uniform heat distribution across the working surface

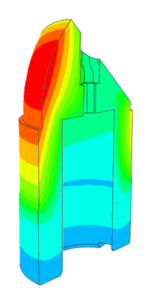

Current convetionally made Core

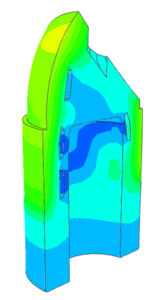

iTherm® Core with conformal cooling channels

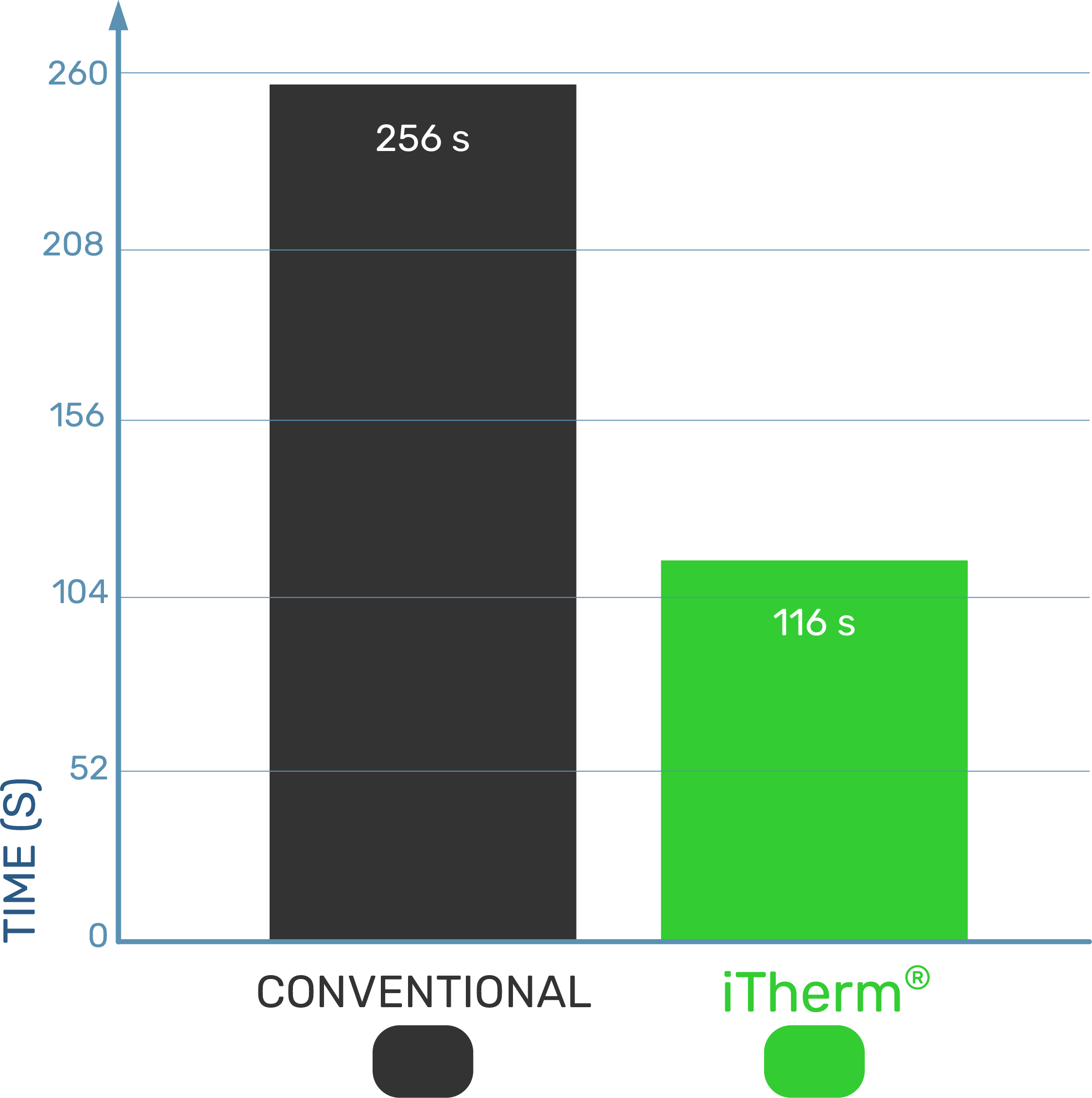

Cycle Time Reduction
Cycle time reduced by 54,7%, from 256s to 116s.
Send us your model to see how iTherm®
can improve your process
